In the escalator, the transparent LED display can be used to display a variety of information and advertising, making it more convenient for passengers to understand the elevator information and obtain useful information while taking the elevator. We propose an application scheme of transparent LED display in escalator. A transparent LED screen is installed on the handrail of the elevator, so that passengers can get useful information without affecting the transparency of the elevator.
The application scenarios of this solution include the following aspects:
Elevator running status display: Transparent LED display can be used to display the running status of the elevator, such as running speed, current floor, stopping floor and other information.
Advertising display: Transparent LED display can be used to broadcast advertisements, such as advertisements of the business on the floor where the elevator is located or relevant social welfare advertisements, etc.
Other information display: Transparent LED display can also be used to display other information, such as weather forecast, clock, etc.

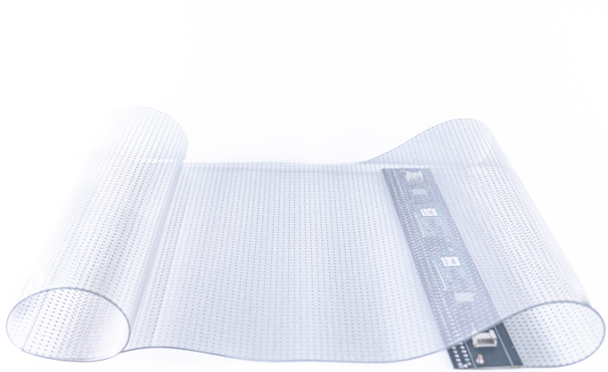

Transparent screen
Specs :
Model
P6.25
P8
P10
P15
P20
Module size (mm)
1000*400
1000*400
1000*400
990*390
1000*400
LED light
REE1515/2121
REE1515/2121
REE1515/2121
REE2121
REE2121
Pixel composition
R1G1B1
R1G1B1
R1G1B1
R1G1B1
R1G1B1
Pixel spacing (mm)
6.25*6.25
8*8
10*10
15*15
20*20
Module pixel
160*64=10240
125*50=6250
100*40=4000
66*26=1716
50*20=1000
Pixel/m²
25600
16500
10000
4356
2500
Brightness cd/m²
2000/4000
2000/4000
2000/4000
2000/4000
2000/4000
Permeability
90%
92%
94%
94%
95%
Angle of view °
160
160
160
160
160
Input voltage
AC110-240V50/ 60Hz
AC110-240V50/ 60Hz
AC110-240V50/ 60Hz
AC110-240V50/ 60Hz
AC110-240V50/ 60Hz
Peak power
600w/㎡
600w/㎡
600w/㎡
600w/㎡
600w/㎡
Average power
200w/㎡
200w/㎡
200w/㎡
200w/㎡
200w/㎡
Work environment
Temperature
– 20~55
Humidity
10-90%
Temperature
– 20~55
Humidity
10-90%
Temperature
– 20~55 Humidity
10-90%
Temperature
– 20~55
Humidity
10-90%
Temperature
– 20~55
Humidity
10-90%
Weight
1.3kg
1.3kg
1.3kg
1.3kg
1.3kg
Thickness
2.5mm
2.5mm
2.5mm
2.5mm
2.5mm
Drive mode
static state
static state
static state
static state
static state
Control system
Nova/Colorlight
Nova/Colorlight
Nova/Colorlight
Nova/Colorlight
Nova/Colorlight
Typical value of life
100000H
100000H
100000H
100000H
100000H
Grayscale level
16bit
16bit
16bit
16bit
16bit
